Rated output：0.55 ~ 315 kW

Frame size：80 ~ 355

Voltage and Frequency：support multiple voltage and frequency

Cooling method：IC411 as standard, IC416, IC410 as option

Oiling device：FS180~355 motor as standard

Degree of protection：IP55

Degree of insulation：F

Coolant temperature：-15 ~ 40 ºC

Site altitude above sea level：not exceed 1000 m

Efficiency Grade：IE3

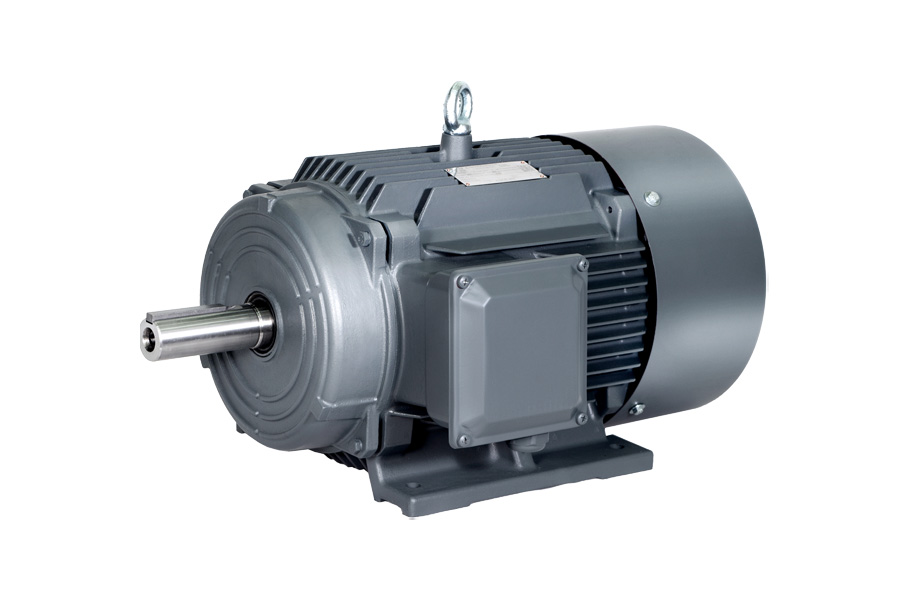

1TL0003 series of motors is the newly designed high efficiency low voltage three phase asynchronous motor, the housing material is cast iron, is designed for continuous duty operation(S1), efficiency fulfill the grade 3 in GB18613-2020. The series of motors owns the features of high efficiency, novel structure, beautiful appearance, low noise, small vibration, high degree of insulation, etc, also can be used in the fields of fans, pump, compressors and textile machine.
