Rated output：0.55 ~ 315 kW

Frame size：80 ~ 355

Voltage and Frequency：support multiple voltage and frequency

Cooling method：IC411(60Hz), IC416, IC410 cooling method can be provided in 50Hz

Oiling device：FS180~355 motor as standard

Degree of protection：IP55

Degree of insulation：F

Coolant temperature：-15 ~ 40 ºC

Site altitude above sea level：not exceed 1000 m

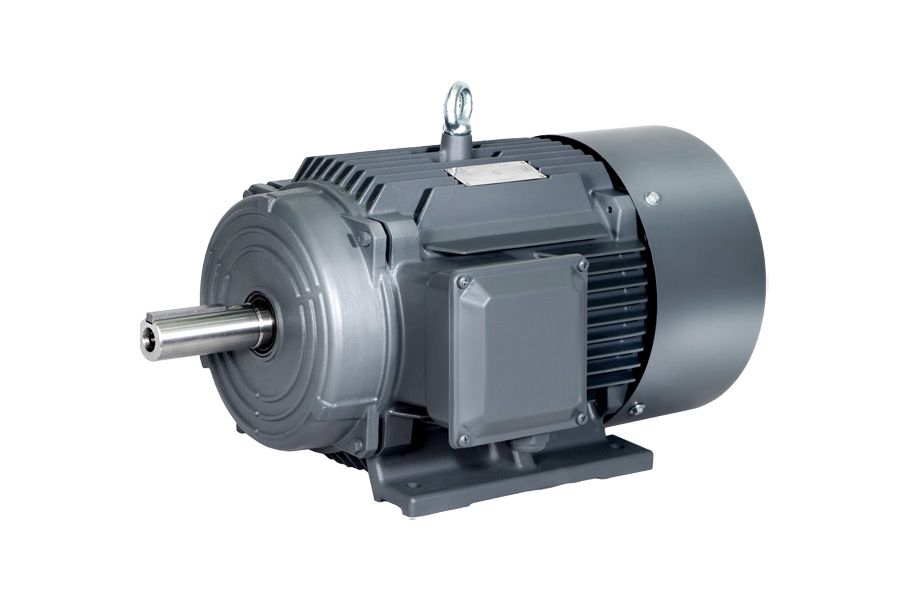

1TL0001 series of motors is the newly designed high efficiency low voltage three phase asynchronous motor, the housing material is cast iron, is designed for continuous duty operation(S1). The series of motors owns the features of high efficiency, novel structure, beautiful appearance, low noise, small vibration, high degree of insulation, etc, also can be used in the fields of fans, pump, compressors and textile machine. The series only be suitable for continuous duty operation(S1), 50Hz motors with IC416, IC410 or IC418 cooling method or under 60Hz.
