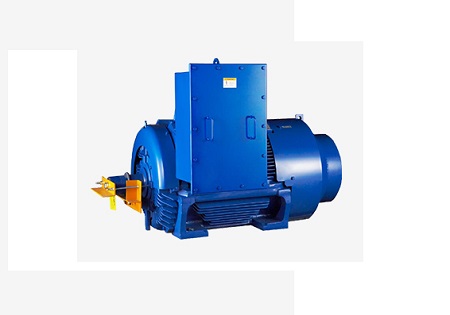

Motor Features

1.It adopts proven VPI process and a reliable insulation system, with high electrical strength of winding and long insulation life.

2.Excellent cooling system, fan design is based on the principle of low loss and high cooling effect to ensure B-level temperature rise while minimizing noise as much as possible.

3. The rotor cast aluminum and copper bar structures can be flexibly selected, and the rotor dynamic balance has low unbalanced mass to ensure smooth operation and low vibration value of the motor.

4. Reliable mechanical structure, high-strength cast iron casting frame and bracket are used, and imported brand bearings are adopted to ensure high mechanical reliability and operational stability of the motor.

Product model: AFJP/AFJH/AFJK

Technical Parameters

Voltage: 1801~4200V

Power: 90kW~1600kW

Number of poles: 2P~8P

Frequency: 50Hz or 60Hz

Frame No.: 315A~560C

Cooling method: IC411

Protection method: IP54

Insulation grade: F

Voltage: 6000~6900V

Power: 150kW~1600kW

Number of poles: 2P~8P

Frequency: 50Hz or 60Hz

Frame No.: 315C~560C

Cooling method: IC411

Protection method: IP54

Insulation grade: F

Product model: AEHG

Technical Parameters

Voltage: 2300/4000V, 3300V, 4160V

Power: 150HP~900HP

Number of poles: 2P~8P

Frequency: 60Hz

Frame No.: 5007~6808

Cooling method: IC411

Protection Method: IP54

Insulation grade: F

Product model: AEHG

Technical Parameters

Voltage: 4201~6900V

Power: 200HP~800HP

Number of poles: 2P~8P

Frequency: 60Hz

Frame No.: 5808~6808

Cooling method: IC411

Protection method: IP54

Insulation grade: F

Product model: AFHG

Technical Parameters

Voltage: 2300/4000V, 2300V, 4160V

Power: 150HP~2000HP

Number of poles: 2P~8P

Frequency: 60Hz

Frame No.: 5007~6812

Cooling method: IC411

Protection method: IP54

Insulation grade: F
