Motor Features

1.It adopts proven vacuum pressure impregnation (VPI) process and a reliable insulation system, with high electrical strength of winding and long insulation life.

2.The rotor cast aluminum and copper bar structures can be flexibly selected, and the rotor dynamic balance has low unbalanced mass to ensure smooth operation and low vibration value of the motor.

3.Large-size junction box to meet strict insulation requirements, more convenient for wiring.

4.Reliable mechanical structure, more optimized base design, and the use of imported brand bearings to ensure high mechanical reliability and operational stability of the motor.

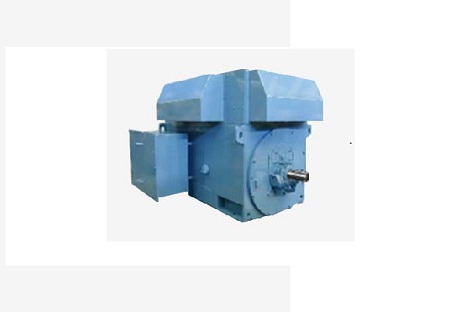

Product model: ASCD/ASZD

Technical Parameters

Voltage: 380V or other voltage

Power: 225kW~1120kW

Number of poles: 2P~12P

Frequency: 50Hz or 60Hz

Frame No.: 355A~560A

Cooling method: IC01

Protection method: IP23

Insulation grade: F
