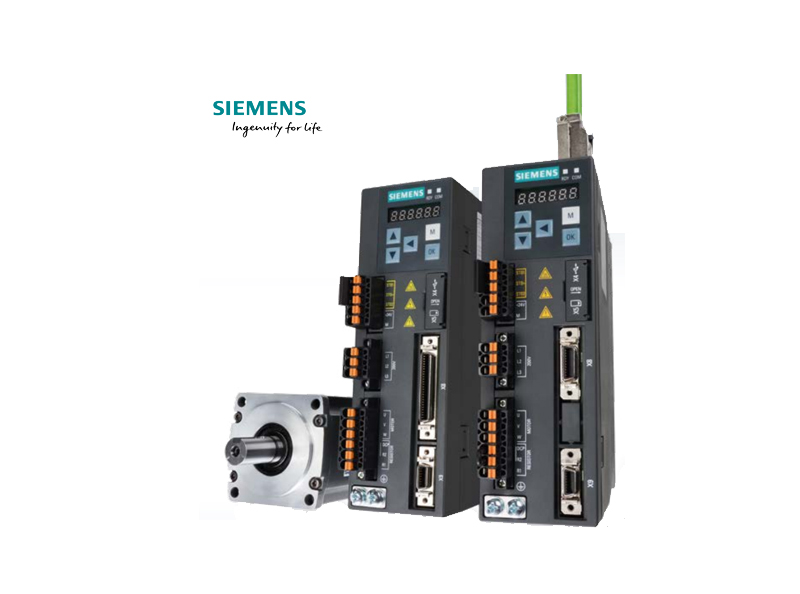

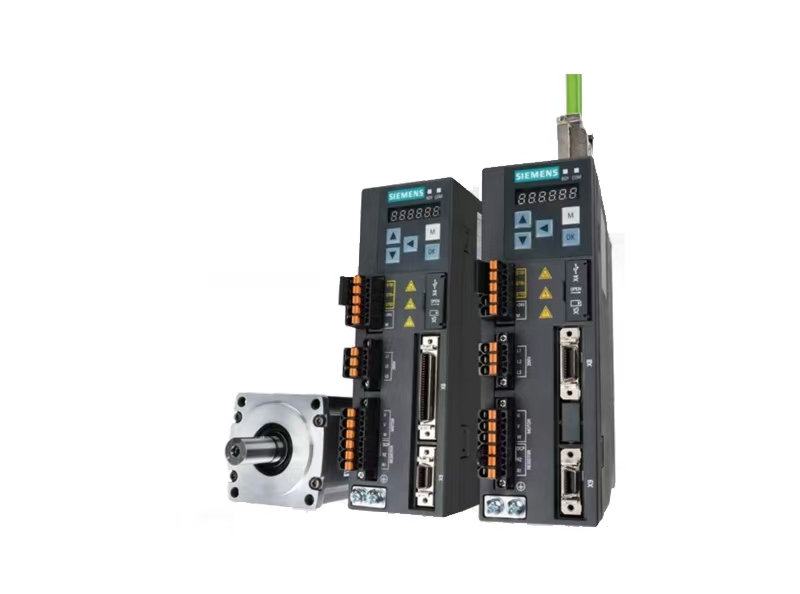

The performance-optimized and easy-to-use servo drive system

SINAMICS V90 is the new member of the SINAMICS drive family, and SIMOTICS S-1FL6 is the new member of the SIMOTICS motor family. Together, they form an optimized servo drive system for positioning, as well as speed and torque control. Through its optimized design, the system ensures high servo performance in a cost-efficient and easy way as well as a high degree of ruggedness.

Power range: 0.4 kW to 7.0 kW

Voltage range: 3AC 380 V ... 480 V (-15% / +10%)

Control modes: Pulse train positioning, internal positioning, speed, torque

Highlights of the SINAMICS V90 and SIMOTICS S-1FL6 servo drive system:

Optimized servo performance

• Auto tuning enables machines to achieve a high dynamic performance

• Automatic suppression of machine resonances

• 1 MHz high-frequency pulse train input

• Multi-turn absolute encoder with 20-bit resolution Cost-effective

• Integrated control modes: Pulse train positioning, internal positioning, speed and torque control modes

• Integrated internal positioning function

• Integrated braking resistor in all frame sizes

• Integrated holding brake switch, no external relay necessary

Easy to use

• Easy servo tuning and machine optimization

• Easy commissioning with SINAMICS V-ASSISTANT

• Parameter cloning

Reliable operation

• Wide voltage range 380 V ~ 480 V, -15% /+10%

• High quality motor bearings

• All motors have IP65 degree of protection and are

equipped with oil seal

• Integrated safe torque off (STO)

• Reliable drive and motor combination
