Conditions of Application

1.Power supply conditions: voltage fluctuation rate within ± 10%, frequency fluctuation rate within ± 5%, comprehensive voltage and frequency fluctuation rate within ± 10%, and frequency fluctuation rate not exceeding ± 5%

2.Place of use: indoor, non hazardous gas environment

3.Ambient temperature: -15～40℃

4.Ambient humidity: relative humidity below 90% (but cannot condense).

5.Altitude: below 1000m above sea level

6.Transmission method: coupling transmission (belt pulley or direct connection optional, processed according to special order)

7.Rotation direction: it can rotate in both directions. When the phase sequence of the power supply is consistent with the marking letter at the motor outlet end, it is clockwise rotation when facing the shaft extension end

8.Starting method: frequency converter starting

9.Painting: black Munsell N1.5-FG

Motor Features

1.Lightweight

TECO permanent magnet high-efficiency motor, characterized by low vibration, low noise, and high torque

2.High efficiency

It uses high-grade permanent magnet, with motor efficiency of IE4

3.Saving energy

Ultra-high efficiency, with a wide range of high-efficiency usage, compared to ordinary asynchronous motors, there is no significant reduction in efficiency and energy-saving effect under low speed and low load rate conditions

4.Excellent torque characteristics

The rated output torque can still be maintained at low speed, meeting the requirements of high torque at low speed

5.Precision trust

High quality, the production factory has obtained ISO-9001 and ISO14001, and the products comply with CE safety regulations

Beautiful and elegant appearance

Fully-enclosed frame bracket structure design, solid appearance, and reliability

Protection mode IP55, meeting international standards and having more security assurance

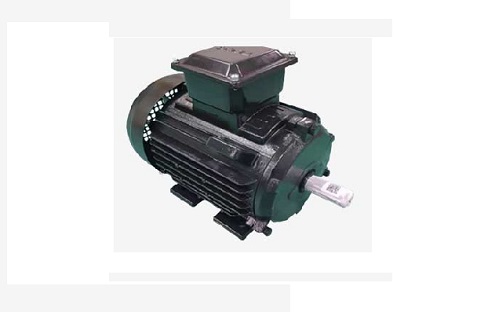

Product model: DVEV/DVDV

Technical Parameters

Power: 0.75kW~400kW

Speed: 1000rpm 1500rpm 3000rpm

Voltage: 380V

Frame No.: F#71-355L

Protection level: IP55

Insulation class: F
