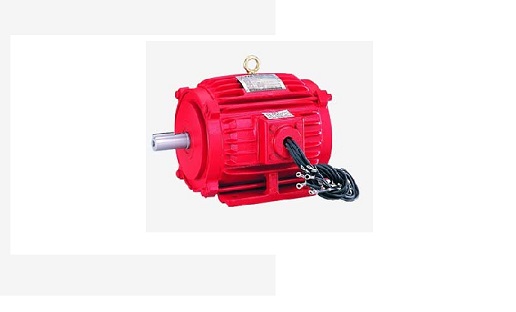

Motor Features

1.In the event of special design for use in building fires, it can emit deadly thick smoke, high heat, and toxic gases at high temperatures, with temperature resistance range of up to 400 ℃. 2H.

2.It can be used as a ventilation device in daily life.

3.It complies with BS7346 Part2, 1990 Specification for power smoke and heat emission ventilators

4.It passed the test by the China Quality Certification Center: qualified in terms of high temperature and humidity resistance;

Product model: AEEBYH/AEVBYH

Technical Parameters

Power: 0.75kW~75kW

Number of Poles: 2P~8P

Voltage: 380V or other voltage

Frequency: 50Hz or 60Hz

Frame No.: F#80M-250M

Protection level: IP55

Insulation grade: F

Product model: AEEVH3/AEUVH3

Technical Parameters

Power: 0.55kW~400kW

Number of Poles: 2P~6P

Voltage: 380V or other voltage

Frequency: 50Hz or 60Hz

Frame No.: F#80M-355C

Protection level: IP55

Insulation grade: F
