Motor Features

1.Simple brake structure: fewer parts, high reliability, easy air gap adjustment, and convenient maintenance

2.The motor and brake are integrated, with small size, light weight, and sturdy structure, supporting installation in a small space.

3.Low brake noise: D.C. brake is used. No electromagnetic noise, extremely low brake noise.

4.Suitable for various voltages: the power supply of the brake is supplied by the motor tap, and appropriate voltage can be taken out according to different wiring methods.

5.High brake frequency: the brake pads are made of advanced non-asbestos materials, which can withstand high frequency, have low wear rate and are pollution-free.

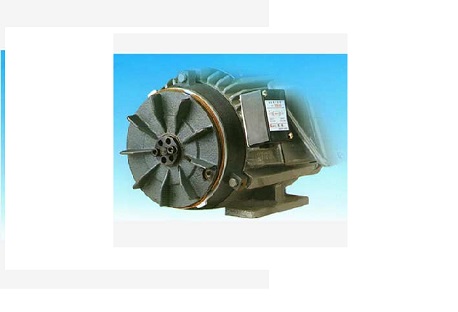

Product model: ETEF/ETVF

Technical Parameters

Power: 0.37kW~22kW

Number of poles: 2P~6P

Voltage: 380V or other voltage

Frequency: 50Hz or 60Hz

Frame No.: F#71-180M

Protection level: IP55

Insulation grade: F
