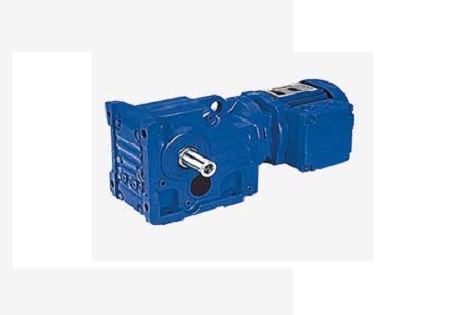

Product Description

1.It is equipped with IE3 or IE4 high-efficiency motors according to the International Electrotechnical Commission (IEC) standards, which effectively saves energy costs and can withstand various frequency and voltage fluctuations.

2.It adopts common industry standards in the market, the exterior installation dimensions are compatible with most German gear motor manufacturers’ products, with strong universality and easy installation for customers.

3. Compact structure, strong impact resistance, more stable transmission, lower noise, longer service life, and high reliability.

4. Diversified installation methods, such as vertical, horizontal, and motor direct connection, more flexible and can be used as per customer requirements.

5. The reducer adopts a cast box, which has good wear resistance, casting resistance, and machinability.

6. The gears are made of high-quality low-carbon alloy steel, which are characterized by impact resistance, wear resistance, and good toughness.

7. Full series to provide low backlash and can be used for precise positioning control.

8. It is suitable for applications with large torque and wear resistance.

9. IP55 protective structure, dustproof, waterproof and oil foam resistance, cast iron frame, strong structure, in accordance with international standards, with more guaranteed safety.

10. TECO F-class insulation, high heat resistance, strong resistance to electric shock, long insulation life, and can withstand harsh environment.

11. Imported brand bearings and silicon steel sheets from well-known steel mills are used, with more guaranteed performance, safe and reliable.

Optional: it can be paired with thermal protector, PTC, space heater, RTD, PT100, etc. according to customer needs.

Technical Parameters

Specification: BK37-BK187

Power: 0.12kW-200kW

Single stage speed ratio: 5.36-197.37

Output torque: 200Nm-50000Nm
